Just as our original Aurora and Matrix designs pushed the boundaries of outback caravan design, our Sinergi explores new dimensions in comfort and balance for our discerning clients. Designed to fit between these two models, the Sinergi offers more internal space than the overall footprint would suggest. The Sinergi could be described as a small twin axle caravan being just 7.2 meters overall, the interior and exterior living spaces however suggest a much larger van.
Type
Off Road Caravan
TARE
2490
ATM
3400
PAYLOAD
910
BERTH + BUNKS
2
TOTAL LENGTH
7225
HEIGHT
2800
WIDTH
2100
Amenities
Internal combined shower toilet basin
Year
New
The Sinergi. Pushing the boundaries of outback caravan design, exploring new dimensions in comfort and balance.
Cooking
The Sinergi provides all the creature comforts of home. Completing this brilliant design are the two extremely versatile kitchen areas.

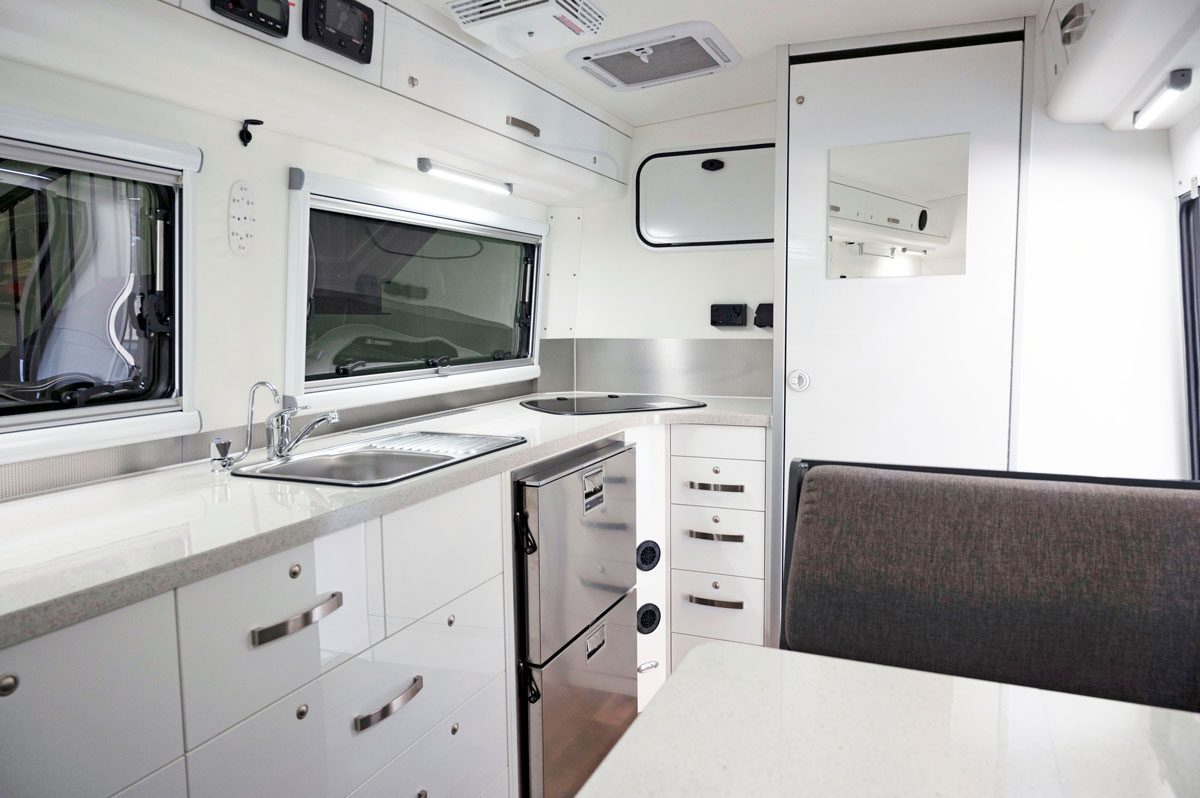

- Standard internal kitchen, S/S sink, drain board, H/C mixer tap, generous pantry/prep areas
- Internal 3 burner stove, glass cook top, plenty of storage
- Optional external cooking configurations
- 145L fridge / freezer mounted, vibration proofing
- More usable awning space 4.5 x 2.2m
Sleeping

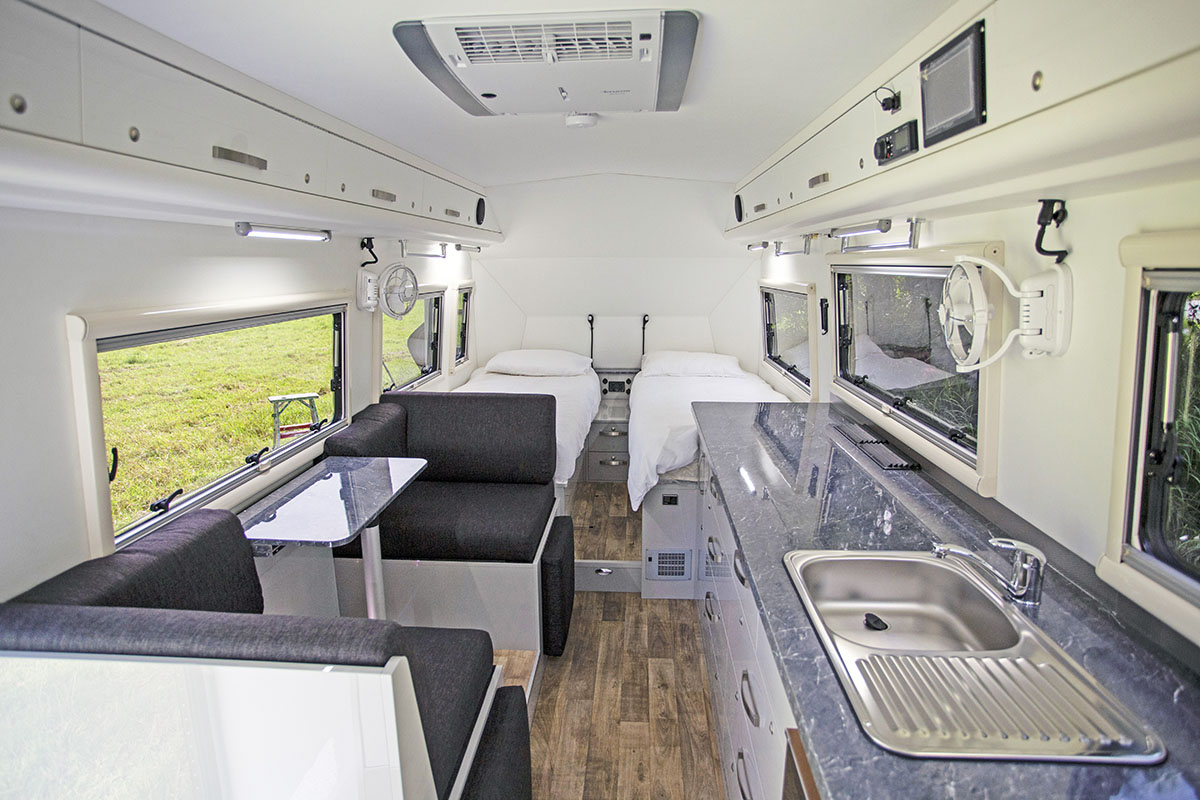

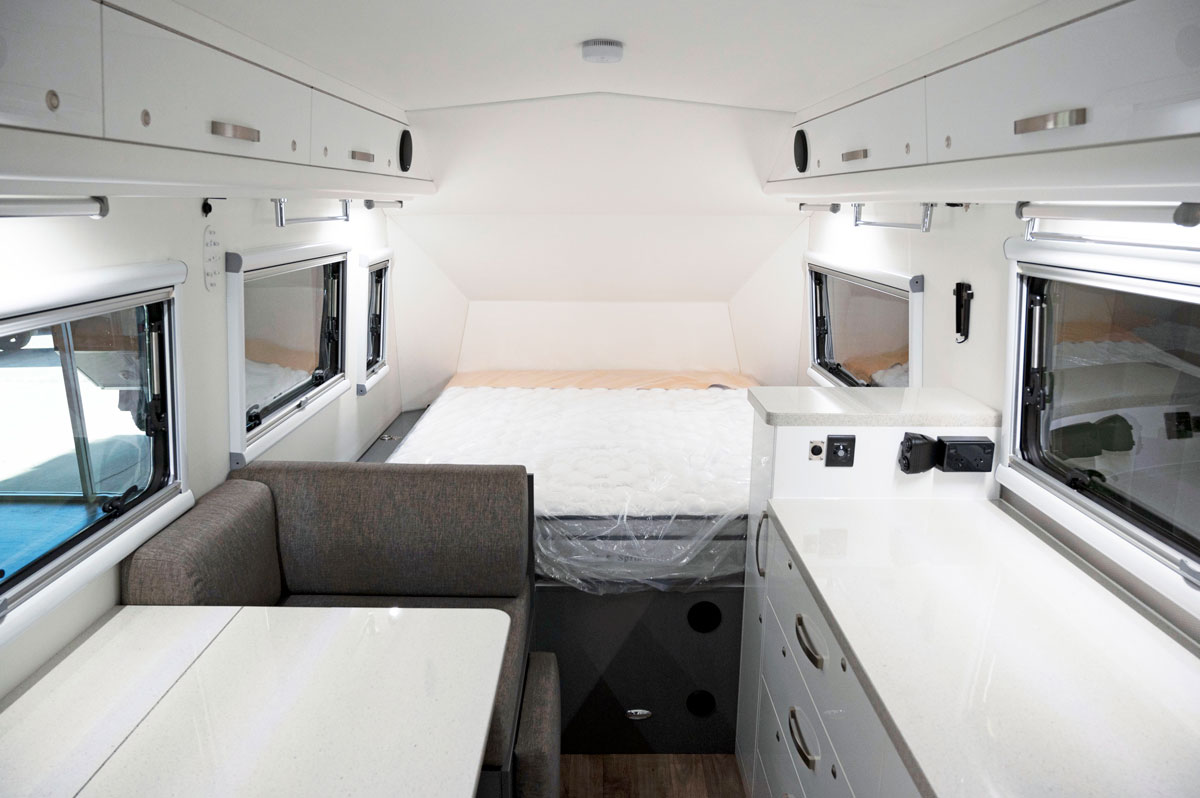

- Featuring standard full-size queen bed, optional twin beds
- Vertical bed head with wider bedside storage due to wider body. Increased window numbers and sizes affording increased ventilation
- Large overhead locker storage areas on both sides of van, full length
- Cafe dinette with trifold table and lounge footrests
- Clothes storage and hanging storage at the foot of the bed
- Large tinted windows, integrated fly, privacy screens
Amenities

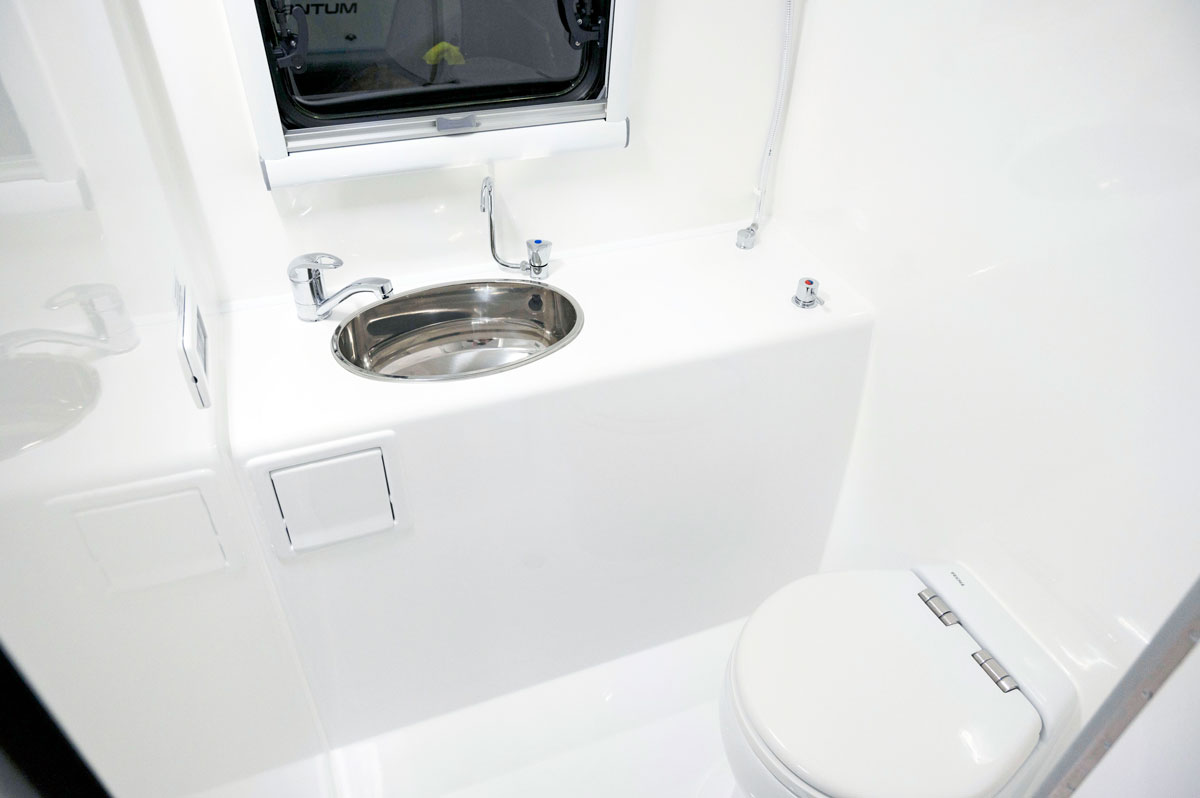

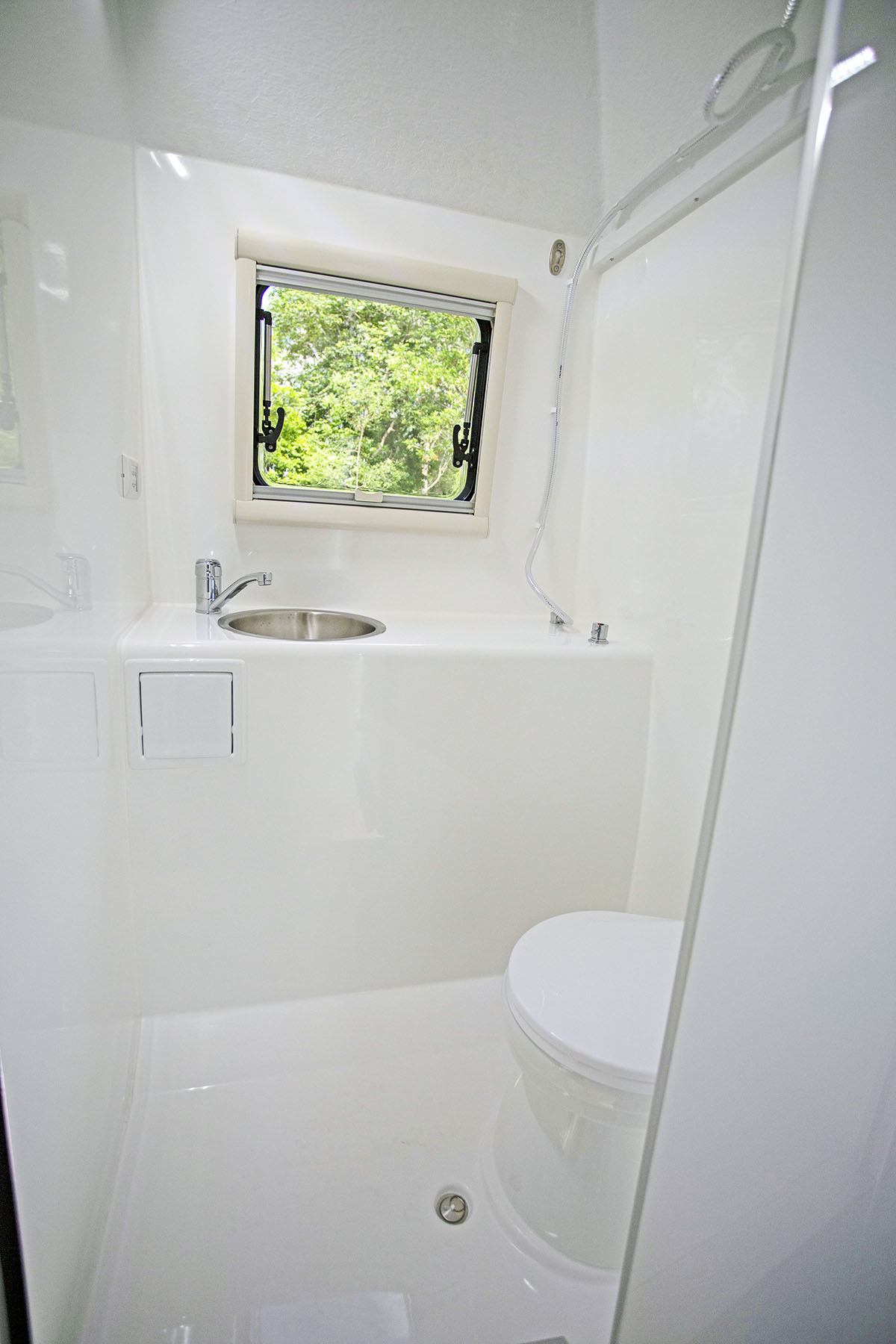

- Full internal ensuite, with combined toilet/shower/basin, easy clean fibreglass with flick mixer
- The shower over toilet is larger internally with internal shelf, vanity basin, window for increased ventilation and quiet flush macerator toilet. The shower door is wider with egress from the toilet no longer into the kitchen space but into the hall affording better ergonomics within the Sinergi.
- Quiet flush marine macerator toilet system with 140L capacity, large mirror, storage drawers
- External H/C shower mixer taps at rear of trailer
- Internal Diesel air cabin heater
- 12V wall mounted Sirocco fan
COLOR OPTIONS
Standard External Color
Dove Grey
Standard Internal Colour
Dove
TRAILER
- Tare 2490kg
- ATM 3400kg
- Payload 910kg
- Drawbar 205kg
- 4 wheel Brakes 12” Disc brakes
- Coupling DO35 rated 3500kg
- Chassis Supergal high tensile steel powder coated
- Suspension Independent twin trailing arm – twin shock absorbers per wheel
- Body Fibreglass
- Wheels 17” steel rims, 265/70/17 AT tyres & single front mounted spare
- Style Full height dual axle
DIMENSIONS
- Total overall 7225mm/23’8”(l)
- Body standard 5850mm(l) 2100(w) 2800mm(h)
- Body height with AC / standard wheels 2985mm (h)
- Internal 5700mm /18’8” (l) 2050mm (w) 2000mm (h)
- Awning size 4.5m x 2.2m
STORAGE AREA DIMENSIONS - QUEEN BED MODEL
- Passengers storage box 618mm (w) 943mm (d) 435mm (h)
- Drivers storage box 762mm (w) 943mm (d)h 435mm (h)
- Generator compartment 668mm (w) 315mm (d) 447mm (h)
- Rear storage compartment 1031mm (w) 436mm (d) estimated 1762mm (h)
LIFESTYLE
-
-
- Battery 300AMP Lithium
- Inverter 2000W Pure Sinewave
- Solar 4 x 140w roof mounted
- Heating Webasto diesel
- Cooling Truma air con optional/1 fan
- Gas 2 x 4.5 gas bottles
- Water 280L Water storage/ Optional no cost grey water storage
- Amenities Int shower over toilet/basin. Rear window for ventilation
- Toilet Marine Macerator TCM Silent flush, 140L black tank
- Kitchen Internal / Ext BBQ slide out
- Cooktop Internal 3 burner gas stove
- Fridge Internal Vitrifrigo 146L Drawer fridge/freezer
- Seating Cafe dinette (2p) with trifold table and lounge footrests
- Sleeping Queen size bed 200mm innerspring mattress
- Berth/Bunks 2, single beds option view model range bed sizes & options
-
STANDARD
AUSTRALIAN MADE
Australian designed
and manufactured
STANDARD
WARRANTY & SERVICE
12mth parts/labour,
5-year warranty chassis
STANDARD
300AMP LITHIUM
300AMP Lithium
Battery
STANDARD
QUEEN SIZE BED
8″ inner spring full size queen bed
STANDARD
CAFE DINETTE
With trifold table and lounge footrests
STANDARD
INTERNAL KITCHEN
S/S sink, drain board, H/C mixer tap, large prep areas
STANDARD
3 BURNER GAS STOVE
With glass top for extra bench space
STANDARD
145L FRIDGE FREEZER
Vitrifrigo 145L fridge freezer mounted
STANDARD
STORAGE DRAWERS
Large vibration proof,
soft close drawers
STANDARD
STORAGE
Storage drawers to
maximise space
STANDARD
QUIET MACERATOR TOILET
Chemical free, electric toilet
140L black tank capacity
STANDARD
COMBINED ENSUITE
Toilet, shower and basin
STANDARD
EXT SLIDING S/S SHELF
To suit optional BBQ, 2 burner grill, pantry, H/C sink
STANDARD
TRIPLE LOCK ENTRY DOOR
Midgey screen, dust
proof, full perimeter seals
STANDARD
4.5 x 2.2m AWNING
External roll out awning with annex matting
STANDARD
DOUBLE GLAZED WINDOWS
Large tinted windows,
integrated fly/privacy screen
STANDARD
POWDER-COATED CHASSIS
Supergal high tensile steel,
stone deflectors, mud flaps
STANDARD
FILTERED VENTING SYSTEM
Positive pressure system in
support of gas regulations
STANDARD
STORAGE
Large external storage spaces
for all your gear
STANDARD
280 L WATER STORAGE
Food grade water tanks,
river access
The photos in this gallery display standard and option features of the Sinergi.
By AOR's Managing Director Steve Budden.
Just as our original Aurora and Matrix designs pushed the boundaries of outback caravan design, our Sinergi explores new dimensions in comfort and balance for our discerning clients. Designed to fit between these two models, the Sinergi offers more internal space than the overall footprint would suggest. The Sinergi could be described as a small twin axle caravan being just 7.2 meters overall, the interior and exterior living spaces however suggest a much larger van.
The Sinergi features a vertical bed head and wide bedside storage with a small hanging space at the foot of the bed, as well as larger slimline tinted windows for increased ventilation. Creating a luxury experience, this off road caravan includes a spacious shower with a large door and vanity, as well as a quiet flush macerator toilet and bathroom window. The large kitchen can be used by two people simultaneously, with separate stove and sink zones. The efficient under bench 145L Vitrifrigo twin drawer fridge frees up valuable bench space and creates a large, uninterrupted versatile workbench not seen in any other model.
The Sinergi also provides large storage areas with more internal compartments and large overhead cupboards. Built for comfort, the lounge features a raised floor for better seating ergonomics, a tri fold table and flip up lounge footrests, complete with cushions designed for both normal seating and sideways lounging. The extra internal length of the Sinergi has allowed us to design separate bed, lounge, cooking and bathroom zones.

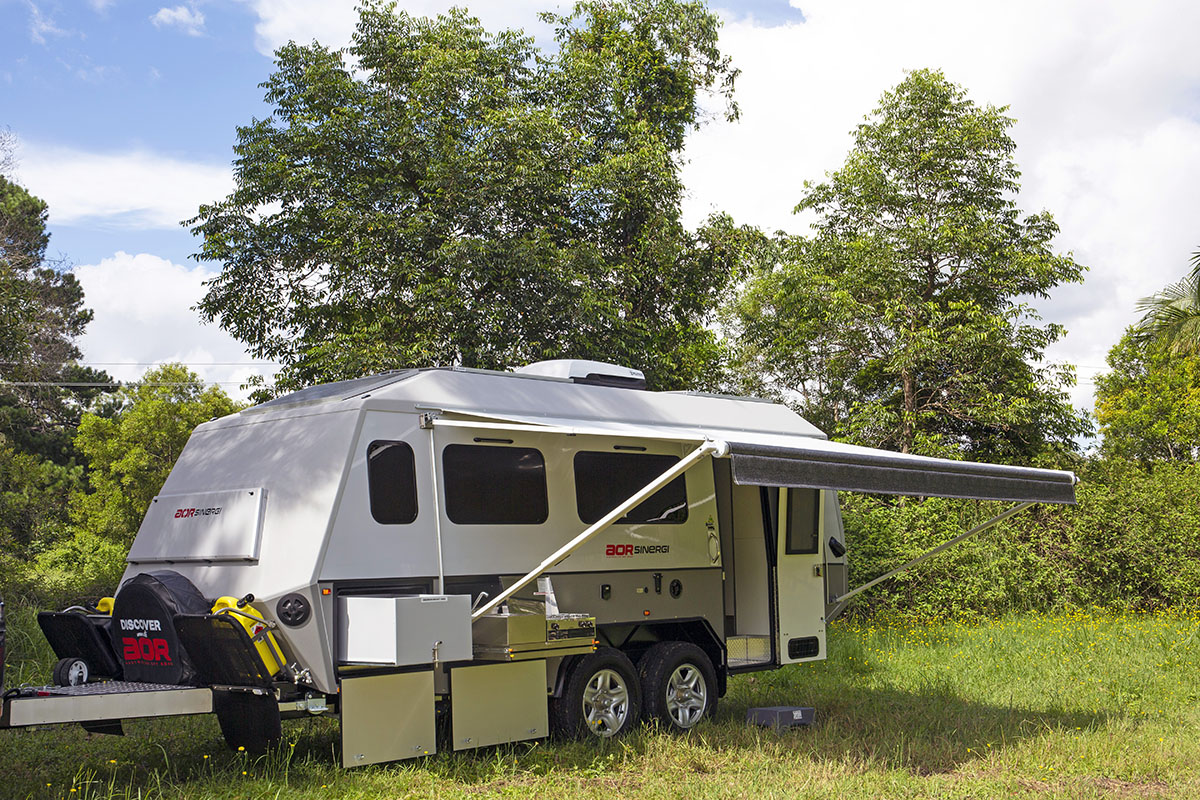

Stepping outside, the aggressive new Sinergi nosecone design affords increased internal useable space. With a payload of 910kg (depending on water storage and options) and a large solar capacity using new generation solar panels, the Sinergi has been designed with the off road traveller in mind. A wide, high entry door allows for easier access, and the large 4.5m awning covers the external cooking space. The Sinergi’s front mounted spare wheel is easily accessible, with an optional 2nd rear wheel space.
This off road caravan also features 2 large pull out front drawers, an optional second fridge/freezer space, 2 rear storage compartments (one a dedicated vented generator space), washing machine space, push bike storage, second spare or just room for your camping chairs and tables. The new rear storage compartments create a dust proof lockable storage area, perfect for heavy or valuable camping gear, with lighter storage in the front pull out drawers to balance payloads. The 2100mm wide body utilises AOR’s faceted body design for strength, light weight and manoeuvrability in all off road conditions.
