Sierra

A versatile micro camper.
Option up or BYO gear.

Type
Micro Camper
Berth + Bunks
2
Cooking Facilities
External kitchen
Amenities
External hot + cold taps, External shower pod
Total Length
4550mm
Height
2300mm
Width
1950mm
Tare
950kg
Atm
1800kg
Payload
850kg

The Sierra is our most versatile model yet.

Option up to suit your needs, whether it’s a weekender, 4WDing or extensive off road trips.

Designed and built exclusively by AOR to include our state-of-the-art electrical systems, water systems and 4WD equipment.

Secure bunker

  • 100% DUST PROOF
  • FULLY LOCKABLE – From the inside
  • SLEEPING – Spacious double bed, fixed roof
  • CROSS VENTILATION – Two large windows
  • INTERNAL HATCHES – Access front storage from safely inside
  • MODERN COMFORTS – Lights, fan, 12V/USB combo
Sierra Lake MacDonnell

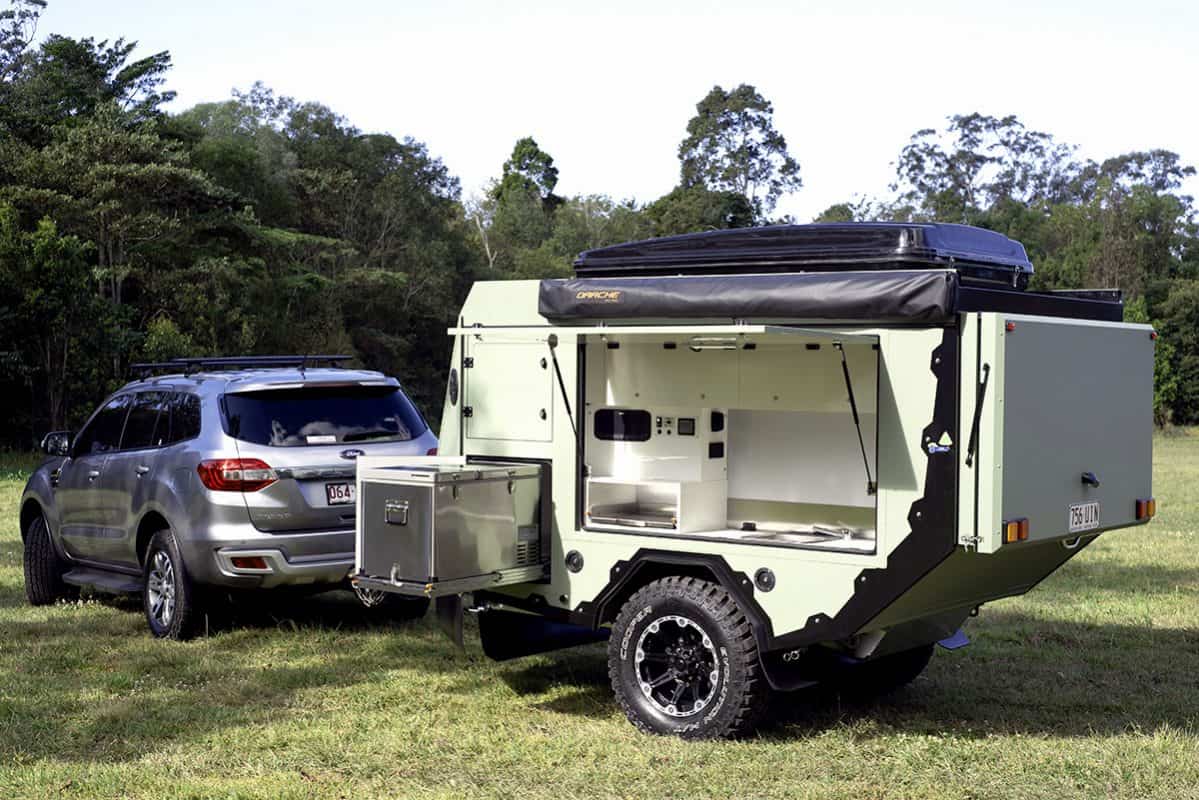

Quick and easy kitchen

  • 100% DUST PROOF
  • KITCHEN – Large side mounted
  • SURFACES – Stainless steel sink/splash back
  • BENCH – Ample space for food preparation
  • CABINETRY – Easy clean Laminex
  • STORAGE – Overheads, self supporting hinges
  • SHELVING – Adjustable, cutlery drawer
  • COOKER – Slide out, add your own / option up
  • FRIDGE – Powered area add a dual stage fridge
  • BBQ – Slide out, add your own / option up
Sierra Bunda Cliffs

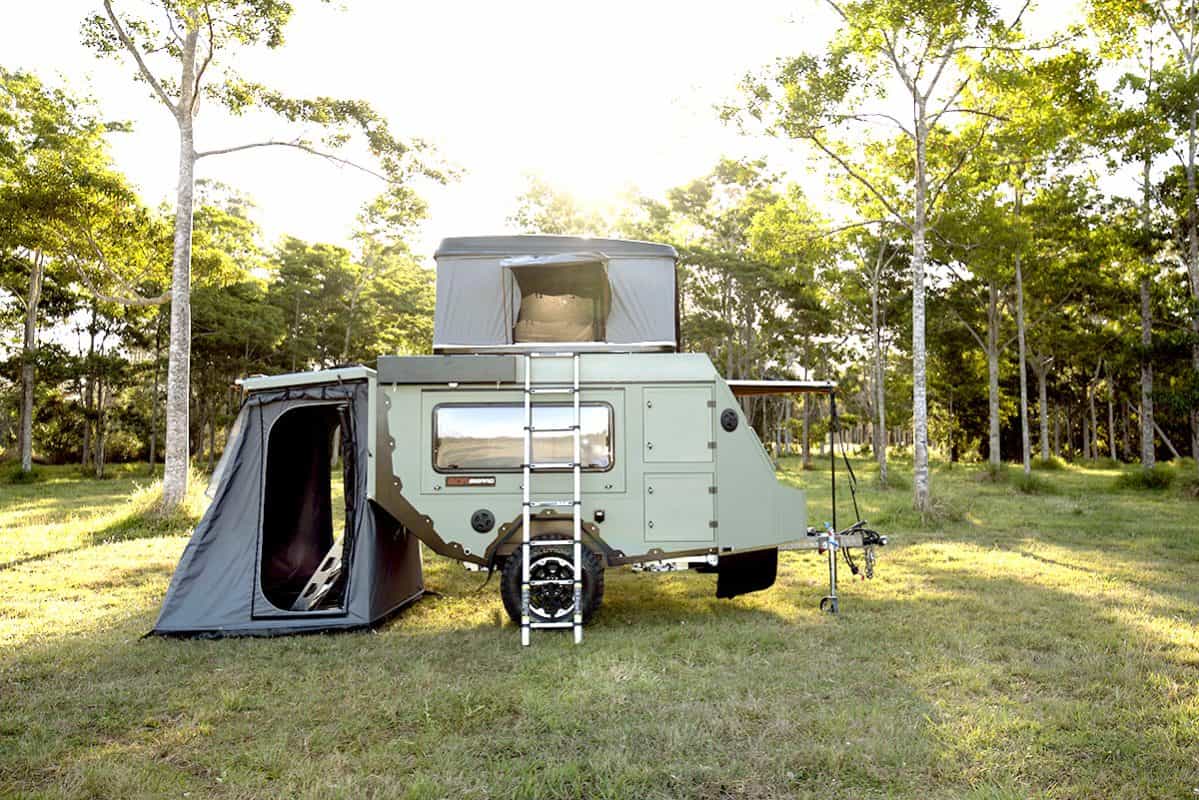

Camping your way

  • 100% AUSTRALIAN MADE
  • STORAGE – Loads of storage 6208L useable space
  • SPORTS – Tunnel front boot for gear
  • FRIDGE/BBQ – BYO / option up
  • SLEEPING – Double bed standard (internal height 1000mm)
  • ROOF RACK – 2600mm x 1766mm
  • CANVAS ROOF TOP TENT – Sleeps 3-4
  • HARD SHELL ROOF TOP TENT – Sleeps 2-3
  • AWNINGS – Bat wing style awning above kitchen
  • ADD AWNINGS – Enclosed awning available
  • SHOWER – Quick pitch style tent
  • CHANGE ROOM – Enclosed canvas room
Sierra Port Neill

Extreme adventures

  • EXIT ANGLE – Extreme ramp over / exit angle (41 degrees)
  • TRACKING – 1950 mm wide body to follow your 4WD anywhere
  • SHOCKS – Armour Offroad shocks per wheel for ultimate control
  • SUSPENSION – Ind trailing arm suspension, variable rate coil spring
  • BRAKES – 12” Electric drum brakes & 2500kg bearings
  • BODY – Extremely tough, durable Armour wrap
  • STONE PROTECTION – under chassis for vulnerable piping + component
  • CHASSIS – Super gal high tensile steel & powdercoated chassis
  • TOW – Fully articulated DO35 off road tow coupling rated for 3500kgs
Sierra lucky bay Cape Le Grand NP

Gas and electrical

The SIERRA is powered and controlled by a 150a/h Lithium Battery, the REDARC RedVision battery management system, switchable 240/inverter power system, external 50amp Andersen plug, solar panel input, LED lights and a protected gas system with 2 bayonets.

Stay off the beaten track longer

Enough water and personal storage to keep you away from civilisation for weeks. Enjoy 60L of water storage in food poly grade tanks standard, all protected by zinc plated bash plates, including a river access system. Plus you can add an extra 140L optional tank for even longer stays off the beaten track.

Sierra DJI

Ultra Comfort & Style.

The AOR Sierra is a cosy yet luxurious option for those looking for a comfortable home away from home. It features a generous custom size double bed for two people and plenty of storage space for all your belongings. For your privacy and convenience, the Sierra comes with privacy curtains, giving you the option to keep the sun out and the inside of your camper more comfortable.

DOUBLE BED

Premium grade foam with memory foam topper

MULTIPLE FANS

Roof top electric fan,
Sirocco fan

Lighting

2 x stalk lights

STORAGE

Under bed storage

PRIVACY WINDOWS

Double glazed side window, tinted, fly screen, privacy blind

Interactive 3d Tour

Walk-Through Video

Birdseye View

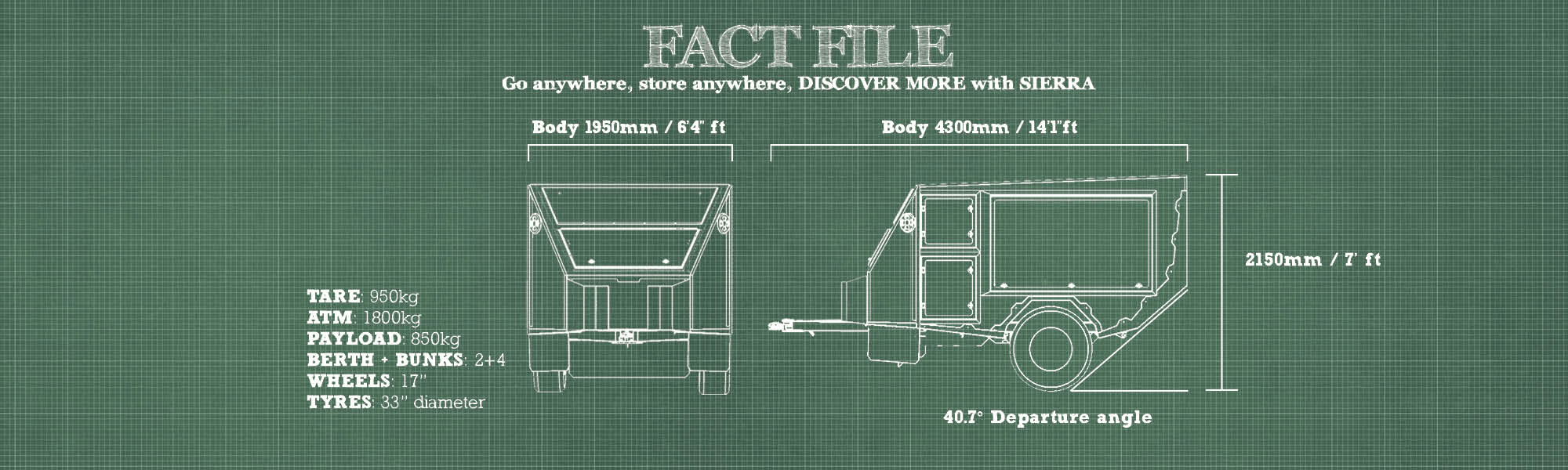

SIERRA PLAN VIEW WITH POD

Specifications

INTERNAL

  • Custom size double bed – multi density memory foam mattress view model range bed sizes & options
  • 2 x internal hatches through to front storage compartments
  • Double glazed side window, tinted, fly screen, privacy blind
  • Rear entry door, fly screen, triple lock perimeter seals
  • Roof top electric fan and pop-up hatch
  • 1 x Sirocco fan
  • 2 x stalk lights
  • Under bed storage

BODY

  • Extreme exit angle (41 degrees)
  • 100x50mm full length drawbar
  • Super Gal high tensile steel / powder coated chassis
  • Galvanised bash plates under chassis
  • Fully articulated DO35 off road tow coupling rated for 3500kg
  • Lightweight aluminum nose cone
  • Lightweight fiberglass body
  • Insulated walls and roof
  • Compression locking system
  • 2 x stabilizer legs
  • 2 x rear recovery tow points
  • Triple front mounted mud flaps
  • Front tunnel boot with marine seals
  • External storage area in front nose cone with top access
  • Under floor secure spare wheel storage
  • Bulk storage with 6208L useable space

EXTERNAL

  • Large side mounted kitchen, stainless steel sink & splash back
  • Lift up benchtop, under bench storage
  • Sliding platform for stove storage
  • Large preparation bench
  • Overhead cabinets, self-supporting hinges
  • 60L of water storage, food grade poly tank
  • River access system bypasses all water tanks

UTILITIES & TECHNICAL

  • 240 AMP lithium battery
  • 12V Socket and dual USB combo
  • Dual colour yellow/white LED lights
  • REDARC RedVision battery management system
  • Red Anderson plug for external solar panel input and grey Andersen plug for 50 AMP power outlet
  • 2 x Outback Armour Offroad shocks per wheel
  • Independent trailing arm suspension, variable rate coil spring
  • 12” Electric drum brakes and 2500kg bearings
  • 285/70R17 Mud Terrain tyres
  • Removable jockey wheel
  • 17 x 8 steel wheels
