Quantum Full Height

Type
Full Height Caravan
TARE
1770kg
ATM
2500kg
PAYLOAD
730kg
BERTH + BUNKS
2+2
TOTAL LENGTH
6400mm
HEIGHT
2840mm
WIDTH
1950mm
Cooking facilities
External kitchen
Amenities
Internal combined shower + toilet
Year
New

Quantum
FULL HEIGHT CARAVAN

Modelled from the award-winning Quantum series, now with full height features. Ideal for 2-3 people, and lovers of external cooking



The Quantum Full Height is a 14ft, luxury Off Road camper that features all the comforts of the award winning Quantum Series, now with full height features. The number and size of the windows has been increased and the interior now features full length European styled overhead lockers and an updated magazine storage rack. The bed now features a vertical bedhead with shelf above for night time use.

The body adopts our PROVEN manufacturing technique of the fibreglass monocoque body. This unique body design increases strength and stiffness, reduces tare weight, only 1840 kg and guarantees dustproofing like no other trailer on the market. It has a narrow body width, just 1950mm wide for easy access to those remote camp spots and 4×4 tracks.

Featuring standard full-size queen bed with optional twin beds, internal ensuite, hot shower and marine macerator toilet system with 140 litre capacity. These features create all the creature comforts of home in a stylish European décor with 280 litre water storage, extra pure water, grey water and recycle water systems available plus the benefits of an advanced solar system and AOR’s proven off-road technology.

For the lovers of outside cooking, the Quantum Full Height comes standard with our Award winning L-shaped stainless-steel external kitchen, generous pantry areas, 3 burner gas stove with glass top for extra bench space and a 82L fridge freezer. This kitchen design creates more useable awning space and more cooking/pantry space than any other trailer on the market

This really is Australia’s most self-sufficient, elegant, full height off road Super Camper.

  • Proven off-road technology using independent trailing arm coil suspension with twin shock absorbers on each wheel
  • 220L fresh water with a 60L grey tank (no cost option)
  • Industry leading marine macerating toilet system with 140 litre black water holding tank, chemical free
  • A huge 300 watts of solar with advanced 12-volt technology and charging systems
  • The redesigned front nose cone allows for increased storage options and decreased fuel consumption of the towing vehicle
  • ATM : 2,500k
  • Berth 2 + 2

COLOR OPTIONS

Standard External Color

Dove Grey

Standard Internal Colour

Alabaster

For a full detailed list of Specifications, please fill out AOR’s online download a brochure form.

INTERNAL

  • Queen size bed with 8” inner spring mattress, mounted on insulated bed base
  • 4 Person dinette with velour seating (optional leather seating)
  • Vibration proof composite kitchen cabinets, full extension self-closing sliding drawers & locks

STORAGE

  • Large external storage area in front nose cone
  • Large slide out storage drawers on right hand side
  • Tunnel front boot with marine seals for carrying poles, anti-flap kits and fishing rods

BODY CHASSIS

  • Unique 1950mm wide body allows trailer to follow your 4WD anywhere and everywhere
  • Lightweight fibreglass body, fully insulated walls & roof
  • Supergal high tensile steel, powder-coated chassis utilising 150 x 50 full length drawbar

KITCHEN – EXTERNAL

  • 4 drawer internal cabinet at the rear with stainless steel sink, hot/cold mixer tap,with optional 2000 watt single induction portable cooktop

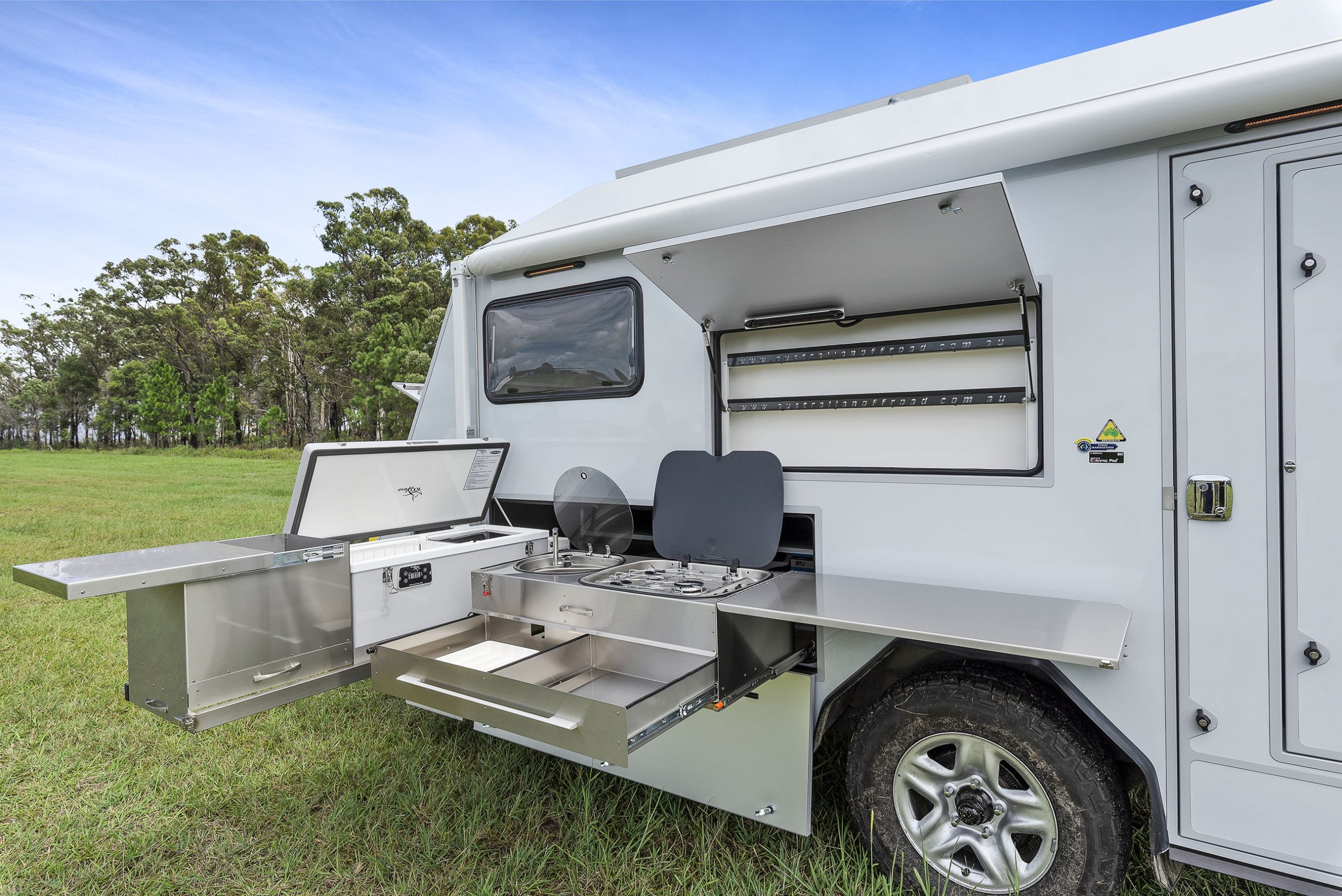

  • Full L-shaped stainless steel external kitchen generous pantry areas, 3 burner gasstove with glass top for extra bench space
  • External Evakool 82L fridge freezer with walled pantry. Five pantry storage areas

CANVAS

  • 3.9 x 2.2m external roll out awning with full anti-flap kit, interchangeable end wall and 2.4 x 4.0m annex matting

HEATING & COOLING

  • Sirocco 807 12 volt fan, wall mounted
  • 2 x large double glazed windows adjacent to bed area for enhanced ventilation
  • Webasto Diesel Cabin heater

AMMENITIES

  • Internal hot shower in easy-clean finish

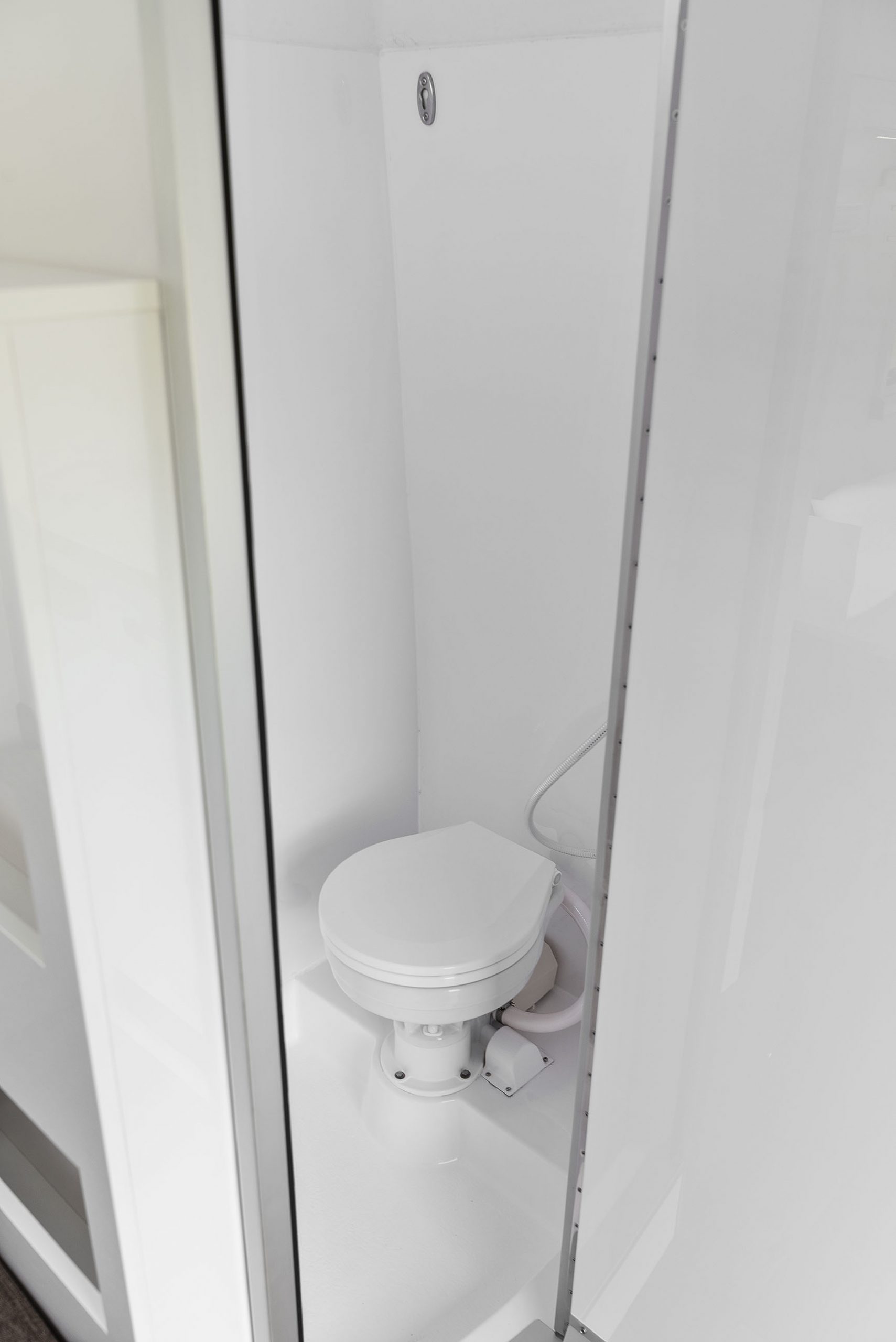

  • Marine macerator, chemical free, electric toilet with 140L black tank capacity, variable flush for economy of use
  • External hot and cold shower mixer taps at rear of trailer

BRAKES, WHEELS & SUSPENSION

  • 3 x 17” x 8” Dynamic Steel rims with 265/70/17 AT tyres
  • 12” electric brakes & 2500kg bearings (disk brake options available)
  • AOR independent twin trailing arm suspension & 2 x EFS Off Road shocks per wheel for ultimate control & strength in all conditions

GAS & ELECTRICAL

  • 200 amp hour lithium battery system
  • 2 x 150 watt solar panels mounted on roof
  • 2000 watt pure sine inverter

WATER

  • 140L “black water” storage tank. Ideal for remote area camping with marine macerator pump out system
  • 280L of water storage in food grade poly tanks. Bash plated on all sides for total protection off-road.
  • 2 x 20L Jerry cans on front nose cone, lockable water fillers
  • Various water tank options available

MEDIA

  • Premium Stereo AM-FM/MP3/USB/Bluetooth with 2 internal speakers
  • Wiring for TV reception internal & external

DOWNLOAD BROCHURE
